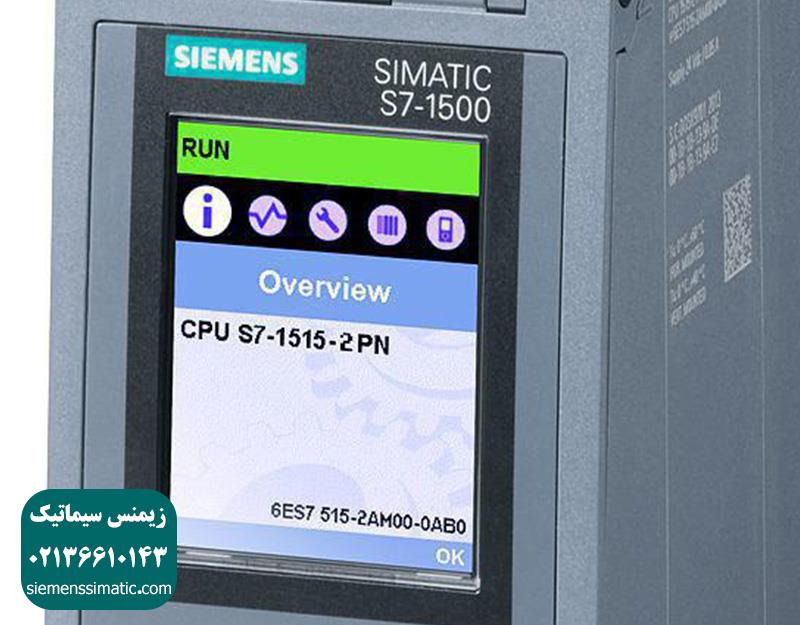

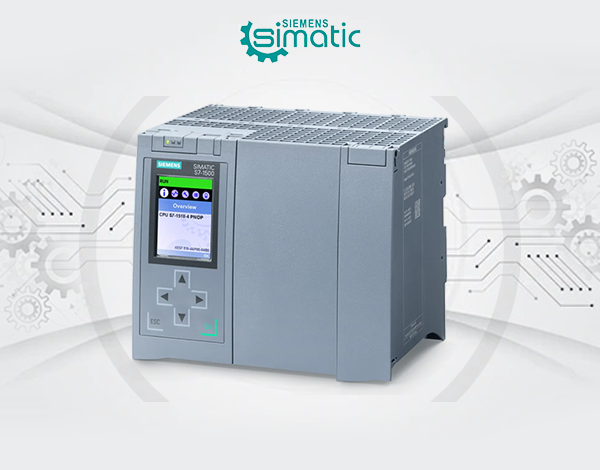

پی ال سی سری S7 1500 زیمنس
جدیدترین و به روزترین محصول شرکت زیمنس آلمان ازخانواده اتوماسیون صنعتی زیمنس میباشد. S71500 زیمنس همانند دیگر خانواده اتوماسیون صنعتی زیمنس دارای CPU و ماژول های ورودی و خروجی است با این تفاوت که سرعت پردازنده CPU زیمنس افزایش یافته و همچنین یک صفحه مانیتور بر روی CPU تعبیه شده تا کاربران زیمنس ازشرح کارکرد CPU مطلع باشند.
نمایندگی زیمنس در ایران جهت آشنایی با این محصول اقدام به آموزش و راه اندازی کلاس های آموزشی در رابطه با آموزش اتوماسیون صنعتی زیمنس نموده است.
درپی ال سی S71500 زیمنس با توجه به نوع CPU زیمنس پورت PN به تعداد 1،2،3 ویا 4 عدد بر روی هر CPU موجود میباشد.
این محصول از خانواده اتوماسیون صنعتی زیمنس بر اساس قیمت لیست ارائه شده توسط شرکت زیمنس به نمایندگی زیمنس ایران به فوش می رسد.
CPU های مدل 510SP،511-1PN و 512SP و 513-1PN و 515-2PN و 516-3PN و 518-4PN مدل هایی از اتوماسیون صنعتی S71500 زیمنس میباشند.
| ردیف | کد قطعه | توضیحات | موجودی |
|---|---|---|---|
| 1 | 6EP1332-4BA00 | SIMATIC PM 1507 24 V/3 A STABILIZED POWER SUPPLY FOR SIMATIC S7-1500 INPUT: 120/230 V AC OUTPUT: 24 V/3 A DC | موجود در نمایندگی زیمنس ایران |
| 2 | 6EP1333-4BA00 | SIMATIC PM 1507 24 V/8 A STABILIZED POWER SUPPLY FOR SIMATIC S7-1500 INPUT: 120/230 V AC OUTPUT: 24 V/8 A DC | موجود در نمایندگی زیمنس ایران |
| 3 | 6ES7155-5AA00-0AA0 | SIMATIC ET 200MP PROFINET IO device Interface module IM 155-5 PN BA for ET 200MP electronic modules; up to 12 IO modules; Integrated 2-port switch; RJ45 Shared Device with 2 IO controllers, MRP; FW update; I&M0...3 | موجود در نمایندگی زیمنس ایران |
| 4 | 6ES7155-5AA00-0AB0 | *** Spare part *** SIMATIC ET 200MP. PROFINET IO device Interface module IM 155-5 PN ST for ET 200MP electronic modules; up to 12 IO modules without PS; up to 30 IO modules with additional PS; integrated 2-port switch; RJ45 shared device; MRP; IRT >=0.25 ms; isochronous mode Firmware update; I&M0...3; FSU with 500 ms | موجود در نمایندگی زیمنس ایران |
| 5 | 6ES7155-5AA00-0AC0 | SIMATIC ET 200MP. PROFINET IO device Interface module IM 155-5 PN HF, for ET 200MP electronic modules; Up to 12 IO modules without PS; Up to 30 IO modules with additional PS; Integrated 2-port switch; RJ45 shared device; MRP; IRT >=0.25 ms; Isochronous mode FW update; I&M0...3; Prioritized startup, S2 redundancy; Shared device with 4 controllers Suitable for operation with active backplane bus (FW V4.4 or higher) | موجود در نمایندگی زیمنس ایران |
| 6 | 6ES7155-5BA00-0AB0 | SIMATIC ET 200MP. PROFIBUS connection IM 155-5 DP ST for max. 12 S7-1500 modules Including PROFIBUS connection plug (6ES7972-0BB70-0XA0) | موجود در نمایندگی زیمنس ایران |
| 7 | 6ES7505-0KA00-0AB0 | SIMATIC S7-1500, SYSTEM POWER SUPPLY PS 25W 24V DC, SUPPLIES THE OPERATING VOLTAGE FOR THE S7-1500 VIA THE BACKPLANE BUS | موجود در نمایندگی زیمنس ایران |
| 8 | 6ES7505-0RA00-0AB0 | SIMATIC S7-1500, SYSTEM POWER SUPPLY PS 60W 24/48/60V DC, SUPPLIES THE OPERATING VOLTAGE FOR THE S7-1500 VIA THE BACKPLANE BUS | موجود در نمایندگی زیمنس ایران |
| 9 | 6ES7505-0RB00-0AB0 | SIMATIC S7-1500, System power supply with buffer functionality PS 60W 24/48/60V DC HF, supplies the backplane bus of the S7-1500 with operating voltage and permits the CPU to retain RAM (data) retentively | موجود در نمایندگی زیمنس ایران |
| 10 | 6ES7507-0RA00-0AB0 | SIMATIC S7-1500, SYSTEM POWER SUPPLY PS 60W 120/230V AC/DC, SUPPLIES THE OPERATING VOLTAGE FOR THE S7-1500 VIA THE BACKPLANE BUS | موجود در نمایندگی زیمنس ایران |
| 11 | 6ES7511-1AK00-0AB0 | SIMATIC S7-1500, CPU 1511-1 PN, CENTRAL PROCESSING UNIT WITH WORKING MEMORY 150 KB FOR PROGRAM AND 1 MB FOR DATA, 1. INTERFACE, PROFINET IRT WITH 2 PORT SWITCH, 60 NS BIT-PERFORMANCE, SIMATIC MEMORY CARD NECESSARY | موجود در نمایندگی زیمنس ایران |
| 12 | 6ES7511-1AK01-0AB0 | *** Spare part *** SIMATIC S7-1500, CPU 1511-1 PN, central processing unit with work memory 150 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 2-port switch, 60 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 13 | 6ES7511-1CK00-0AB0 | *** Spare part *** SIMATIC S7-1500 Compact CPU CPU 1511C-1 PN, central processing unit with work memory 175 KB for program and 1 MB for data, 16 digital inputs, 16 digital outputs, 5 analog inputs, 2 analog outputs, 6 high-speed counters, 4 high-speed counters for PTO/PWM/frequency output 1st interface: PROFINET IRT with 2-port switch, 60 ns bit performance, incl. push-in front connector, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 14 | 6ES7511-1FK01-0AB0 | *** Spare part *** SIMATIC S7-1500F, CPU 1511F-1 PN, Central processing unit with work memory 225 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 2-port switch, 60 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 15 | 6ES7511-1TK01-0AB0 | SIMATIC S7-1500T, CPU 1511T-1 PN, Central processing unit with Work memory 225 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 2-port switch, 60 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 16 | 6ES7511-1UK01-0AB0 | SIMATIC S7-1500T, CPU 1511TF-1 PN, Central processing unit with Work memory 225 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 2-port switch, 60 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 17 | 6ES7512-1CK00-0AB0 | *** Spare part *** SIMATIC S7-1500 compact CPU CPU 1512C-1 PN, Central processing unit with work memory 250 KB for program and 1 MB for data, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high-speed counters, 4 high-speed counters for PTO/PWM/frequency output 1st interface: PROFINET IRT with 2-port switch, 48 ns bit performance, incl. push-in front connector, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 18 | 6ES7513-1AL00-0AB0 | SIMATIC S7-1500, CPU 1513-1 PN, CENTRAL PROCESSING UNIT WITH WORKING MEMORY 300 KB FOR PROGRAM AND 1.5 MB FOR DATA, 1. INTERFACE, PROFINET IRT WITH 2 PORT SWITCH, 40 NS BIT-PERFORMANCE, SIMATIC MEMORY CARD NECESSARY | موجود در نمایندگی زیمنس ایران |
| 19 | 6ES7513-1AL01-0AB0 | *** Spare part *** SIMATIC S7-1500, CPU 1513-1 PN, central processing unit with work memory 300 KB for program and 1.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 40 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 20 | 6ES7513-1FL01-0AB0 | *** Spare part *** SIMATIC S7-1500F, CPU 1513F-1 PN, central processing unit with work memory 450 KB for program and 1.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 40 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 21 | 6ES7515-2AM01-0AB0 | *** Spare part *** SIMATIC S7-1500, CPU 1515-2 PN, central processing unit with work memory 500 KB for program and 3 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 30 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 22 | 6ES7515-2FM01-0AB0 | *** Spare part *** SIMATIC S7-1500F, CPU 1515F-2 PN, central processing unit with work memory 750 KB for program and 3 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 30 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 23 | 6ES7515-2TM01-0AB0 | SIMATIC S7-1500T, CPU 1515T-2 PN, Central processing unit with work memory 750 KB for program and 3 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface, Ethernet, 30 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 24 | 6ES7515-2UM01-0AB0 | SIMATIC S7-1500T, CPU 1515TF-2 PN, Central processing unit with work memory 750 KB for program and 3 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface, Ethernet, 30 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 25 | 6ES7516-3AN00-0AB0 | SIMATIC S7-1500, CPU 1516-3 PN/DP, CENTRAL PROCESSING UNIT WITH WORKING MEMORY 1 MB FOR PROGRAM AND 5 MB FOR DATA, 1. INTERFACE, PROFINET IRT WITH 2 PORT SWITCH, 2. INTERFACE, ETHERNET, 3. INTERFACE, PROFIBUS, 10 NS BIT-PERFORMANCE, SIMATIC MEMORY CARD NECESSARY | موجود در نمایندگی زیمنس ایران |
| 26 | 6ES7516-3AN01-0AB0 | *** Spare part *** SIMATIC S7-1500, CPU 1516-3 PN/DP, central processing unit with work memory 1 MB for program and 5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 10 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 27 | 6ES7516-3FN01-0AB0 | *** Spare part *** SIMATIC S7-1500F, CPU 1516F-3 PN/DP, central processing unit with work memory 1.5 MB for program and 5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 10 ns bit performance, SIMATIC memory card required | موجود در نمایندگی زیمنس ایران |
| 28 | 6ES7516-3TN00-0AB0 | SIMATIC S7-1500T, CPU 1516T-3 PN/DP, Central processing unit with 1.5 MB RAM for program and 5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface, Ethernet, 3rd interface, PROFIBUS, 10 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 29 | 6ES7516-3UN00-0AB0 | SIMATIC S7-1500TF, CPU 1516TF-3 PN/DP, Central processing unit with 1.5 MB RAM for program and 5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface, Ethernet, 3rd interface, PROFIBUS, 10 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 30 | 6ES7517-3AP00-0AB0 | SIMATIC S7-1500, CPU 1517-3 PN/DP, Central processing unit with work memory 2 MB for Program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 31 | 6ES7517-3FP00-0AB0 | SIMATIC S7-1500F, CPU 1517F-3 PN/DP, Central processing unit with Work memory 3 MB for Program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 32 | 6ES7517-3TP00-0AB0 | SIMATIC S7-1500T, CPU 1517T-3 PN/DP, Central processing unit with work memory 3 MB for program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface, Ethernet, 3rd interface, PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 33 | 6ES7517-3UP00-0AB0 | SIMATIC S7-1500TF, CPU 1517TF-3 PN/DP, Central processing unit with work memory 3 MB for program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface, Ethernet, 3rd interface, PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 34 | 6ES7518-4AP00-0AB0 | SIMATIC S7-1500, CPU 1518-4 PN/DP, central processing unit with 6 MB work memory for program and 60 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: Ethernet, 4th interface: PROFIBUS, 1 ns bit-performance, SIMATIC Memory Card required | موجود در نمایندگی زیمنس ایران |
| 35 | 6ES7518-4AX00-1AC0 | SIMATIC S7-1500, CPU Bundle consisting of: CPU 1518-4 PN/DP MFP (6ES7518-4AX00-1AB0), including C/C++ Runtime and OPC UA Runtime license, 6 MB work memory for program and 60 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFINET basic services, 4th interface: PROFIBUS, 1 ns bit performance, SIMATIC Memory Card (min. 2 GB) required | موجود در نمایندگی زیمنس ایران |
| 36 | 6ES7518-4FX00-1AC0 | SIMATIC S7-1500F, CPU Bundle consisting of: CPU 1518F-4 PN/DP MFP (6ES7518-4FX00-1AB0), including C/C++ Runtime and OPC UA Runtime license, 9 MB work memory for program and 60 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFINET basic services, 4th interface: PROFIBUS, 1 ns bit performance, SIMATIC Memory Card (min. 2 GB) required | موجود در نمایندگی زیمنس ایران |
| 37 | 6ES7521-1BH00-0AB0 | SIMATIC S7-1500, DIGITAL INPUT MODULE DI16 X DC24V, 16 CHANNELS IN GROUPS OF 16; INPUT DELAY 0.05 ... 20MS; INPUT TYPE 3 (IEC 61131); DIAGNOSIS, PROCESSALARMS | موجود در نمایندگی زیمنس ایران |
| 38 | 6ES7521-1BH10-0AA0 | SIMATIC S7-1500 Digital input module, DI 16x24 V DC BA, 16 channels in groups of 16, input delay typ. 3.2 ms, input type 3 (IEC 61131); Delivery incl. front connector Push-in | موجود در نمایندگی زیمنس ایران |
| 39 | 6ES7521-1BH50-0AA0 | SIMATIC S7-1500, DIGITAL INPUT MODULE DI16 X DC24V, SOURCE; 16 CHANNELS IN GROUPS OF 16; INPUT DELAY 3.2MS; INPUT TYPE 3 (IEC 61131) | موجود در نمایندگی زیمنس ایران |
| 40 | 6ES7521-1BL00-0AB0 | SIMATIC S7-1500, DIGITAL INPUT MODULE DI32 X DC24V, 32 CHANNELS IN GROUPS OF 16; INPUT DELAY 0.05... 20MS; INPUT TYPE 3 (IEC 61131); DIAGNOSIS, PROCESSALARMS | موجود در نمایندگی زیمنس ایران |
| 41 | 6ES7521-1BL10-0AA0 | SIMATIC S7-1500 Digital input module, DI 32x24 V DC BA, 32 channels in groups of 16, Input delay typ. 3.2 ms, Input type 3 (IEC 61131); Delivery incl. front connector Push-in | موجود در نمایندگی زیمنس ایران |
| 42 | 6ES7521-1FH00-0AA0 | SIMATIC S7-1500, DIGITAL INPUT MODULE DI16 X AC230V, 16 CHANNELS IN GROUPS OF 4; INPUT DELAY 20MS; INPUT TYPE 1 (IEC 61131) | موجود در نمایندگی زیمنس ایران |
| 43 | 6ES7521-7EH00-0AB0 | SIMATIC S7-1500, digital input module DI 16x 24...125 V UC HF, 16 channels in groups of 1; input delay 0.05..20 ms; Input type 3 (IEC 61131); Diagnostics, hardware interrupts: Front connector (screw terminals or push-in) to be ordered separately | موجود در نمایندگی زیمنس ایران |
| 44 | 6ES7522-1BF00-0AB0 | SIMATIC S7-1500, DIGITAL OUTPUT MODULE DQ 8 X 24VDC,2A; 8 CHANNELS IN GROUPS OF 8, 8 A PER GROUP; DIAGNOSIS; SUBSTITUTE VALUE | موجود در نمایندگی زیمنس ایران |
| 45 | 6ES7522-1BH00-0AB0 | SIMATIC S7-1500, DIGITAL OUTPUT MODULE DQ 16 X 24VDC/0.5A; 16 CHANNELS IN GROUPS OF 8, 4 A PER GROUP; DIAGNOSIS; SUBSTITUTE VALUE | موجود در نمایندگی زیمنس ایران |
| 46 | 6ES7522-1BH00-0AB0 | SIMATIC S7-1500, DIGITAL OUTPUT MODULE DQ 16 X 24VDC/0.5A; 16 CHANNELS IN GROUPS OF 8, 4 A PER GROUP; DIAGNOSIS; SUBSTITUTE VALUE | موجود در نمایندگی زیمنس ایران |
| 47 | 6ES7522-1BH01-0AB0 | SIMATIC S7-1500, digital output module DQ16x24 V DC/0.5A HF; 16 channels in groups of 8; 4 A per group; single-channel diagnostics; substitute value: switching cycle counter for connected actuators. the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw terminals or push-in) to be ordered separately | موجود در نمایندگی زیمنس ایران |
| 48 | 6ES7522-1BH10-0AA0 | SIMATIC S7-1500, digital output module, DQ16xDC 24V/0.5A BA, 16 channels in groups of 8, 4 A per group; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. delivery incl. front connector push-in | موجود در نمایندگی زیمنس ایران |
| 49 | 6ES7522-1BL00-0AB0 | SIMATIC S7-1500, DIGITAL OUTPUT MODULE DQ 32 X 24VDC/0.5A; 32 CHANNELS IN GROUPS OF 8, 4 A PER GROUP; DIAGNOSIS; SUBSTITUTE VALUE | موجود در نمایندگی زیمنس ایران |
| 50 | 6ES7522-1BL10-0AA0 | SIMATIC S7-1500, digital output module, DQ32xDC 24V/0.5A BA, 32 channels in groups of 8, 4 A per group; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. delivery incl. front connector push-in | موجود در نمایندگی زیمنس ایران |
| 51 | 6ES7522-5EH00-0AB0 | SIMATIC S7-1500, digital output module DQ16x24..48VUC/125V DC/0.5A ST; 16 channels in groups of 1; 0.5 A per group; substitute value: observe derating the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw terminals or push-in) to be ordered separately | موجود در نمایندگی زیمنس ایران |
| 52 | 6ES7522-5FF00-0AB0 | SIMATIC S7-1500, digital output module DQ 8x230 V AC/2 A ST; TRIAC; 8 channels in groups of 1; 2 A per group; Substitute value: Front connector (screw terminals or push-in) to be ordered separately | موجود در نمایندگی زیمنس ایران |
| 53 | 6ES7522-5FH00-0AB0 | SIMATIC S7-1500, digital output module DQ 16x230 V AC/1 A ST; TRIAC; 16 channels in groups of 2; 2 A per group; Substitute value: Front connector (screw terminals or push-in) to be ordered separately | موجود در نمایندگی زیمنس ایران |
| 54 | 6ES7522-5HF00-0AB0 | SIMATIC S7-1500, DIGITAL OUTPUT MODULE DQ 8 X 230VAC/5A,RELAY; 8 CHANNELS IN GROUPS OF 1, 5A PER GROUP; DIAGNOSIS; SUBSTITUTE VALUE | موجود در نمایندگی زیمنس ایران |
| 55 | 6ES7522-5HH00-0AB0 | SIMATIC S7-1500, digital output module DQ 16x 230V AC/2A ST; relay 16 channels in groups of 2; 4 A per group; switching cycle counter for integrated relay, diagnostics; substitute value: the module supports the safety-oriented shutdown of load groups up to SIL1 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015. front connector (screw terminals or push-in) to be ordered separately | موجود در نمایندگی زیمنس ایران |
| 56 | 6ES7523-1BL00-0AA0 | SIMATIC S7-1500 digital input/output module, DI16x 24VDC BA, 16 channels in groups of 16, input delay typ. 3.2 ms input type 3 (IEC 61131), DQ16XDC 24V/0.5A BA; 16 channels in groups of 8; 4 A per group; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015. delivery including front connector push-in, | موجود در نمایندگی زیمنس ایران |
| 57 | 6ES7526-1BH00-0AB0 | SIMATIC S7-1500, F digital input module, F-DI 16x 24 V DC PROFIsafe; 35 mm width; up to PL E (ISO 13849-1)/ SIL 3 (IEC 61508) | موجود در نمایندگی زیمنس ایران |
| 58 | 6ES7526-2BF00-0AB0 | SIMATIC S7-1500, F digital output module, F-DQ 8x 24 V DC 2A PPM PROFIsafe; 35 mm width; up to PL E (ISO 13849-1)/ SIL3 (IEC 61508) | موجود در نمایندگی زیمنس ایران |
| 59 | 6ES7531-7KF00-0AB0 | SIMATIC S7-1500, ANALOG INPUT MODULE AI 8 X U/I/RTD/TC, 16 BITS OF RESOLUTION, ACCURACY 0.3 %; 8 CHANNELS IN GROUPS OF 8; COMMON MODE VOLTAGE APPR. 10 V; DIAGNOSIS, PROCESSALARMS INCL. INFEED ELEMENT, SHIELD CLAMP AND SHIELD TERMINAL | موجود در نمایندگی زیمنس ایران |
| 60 | 6ES7531-7NF00-0AB0 | SIMATIC S7-1500 analog input module AI 8xU/I HF, up to 24 bit resolution, accuracy 0.1%, 8 channels in groups of 1; common mode voltage: 30 V AC/60 V DC, Diagnostics; Hardware interrupts Measured values scalable, measuring range adjustment, Calibrate in RUN; Delivery including infeed element, shield bracket and shield terminal: Front connector (screw terminals or push-in) to be ordered separately | موجود در نمایندگی زیمنس ایران |
| 61 | 6ES7531-7NF10-0AB0 | SIMATIC S7-1500, ANALOG INPUT MODULE AI 8 X U/I HS, 16 BITS OF RESOLUTION, ACCURACY 0.3 %; 8 CHANNELS IN GROUPS OF 8; COMMON MODE VOLTAGE APPR. 10V; DIAGNOSIS, PROCESSALARMS; 8 CHANNELS IN 0,125 MS INCL. INFEED ELEMENT, SHIELD CLAMP AND SHIELD TERMINAL | موجود در نمایندگی زیمنس ایران |
| 62 | 6ES7531-7PF00-0AB0 | SIMATIC S7-1500 analog input module AI 8xU/R/RTD/TC HF, 16 bit resolution, up to 21 bit Resolution at RT and TC, accuracy 0.1%, 8 channels in groups of 1; common mode voltage: 30 V AC/60 V DC, Diagnostics; Hardware interrupts Scalable temperature measuring range, thermocouple type C, Calibrate in RUN; Delivery including infeed element, shield bracket and shield terminal: Front connector (screw terminals or push-in) to be ordered separately | موجود در نمایندگی زیمنس ایران |
| 63 | 6ES7531-7QD00-0AB0 | SIMATIC S7-1500 Analog input module AI 4xU/I/RTD/TC ST, 16 bit resolution, Accuracy 0.3%, 4 channels in groups of 4; 2 channels for RTD measurement; Common mode voltage 10 V; Diagnostics; Hardware interrupts; Delivery including push-in front connector, infeed element, shield bracket, and shield terminal | موجود در نمایندگی زیمنس ایران |
| 64 | 6ES7532-5HD00-0AB0 | SIMATIC S7-1500, ANALOG OUTPUT MODULE AQ 4 X U/I ST; 16 BITS OF RESOLUTION, ACCURACY 0.3 %; 4 CHANNELS IN GROUPS OF 4; DIAGNOSIS, SUBSTITUTE VALUE INCL. INFEED ELEMENT, SHIELD CLAMP AND SHIELD TERMINAL | موجود در نمایندگی زیمنس ایران |
| 65 | 6ES7532-5HF00-0AB0 | SIMATIC S7-1500, ANALOG OUTPUT MODULE AQ 8 X U/I HS 16 BITS OF RESOLUTION, ACCURACY 0.3 %, 8CHANNELS IN GROUPS OF 8, DIAGNOSIS, SUBSTITUTE VALUE 8 CHANNELS IN 0.125 MS INCL. INFEED ELEMENT, SHIELD CLAMP AND SHIELD TERMINAL | موجود در نمایندگی زیمنس ایران |
| 66 | 6ES7532-5NB00-0AB0 | SIMATIC S7-1500, analog output module AQ 2x U/I ST, 16-bit resolution accuracy 0.3%. 2 channels in groups of 2, diagnostics; substitute value; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015. delivery including front connector push-in, infeed element, shielding bracket and shield terminal | موجود در نمایندگی زیمنس ایران |
| 67 | 6ES7532-5ND00-0AB0 | SIMATIC S7-1500, analog output module AQ 4xU/I HF, 16-bit resolution accuracy 0.1%, 4 channels in groups of 1, common mode voltage: 30 V AC/60 V DC, diagnostics; substitute value, isochronous mode; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. delivery including infeed element, shielding bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately | موجود در نمایندگی زیمنس ایران |
| 68 | 6ES7534-7QE00-0AB0 | SIMATIC S7-1500 Analog input/output module AI 4x U/I/R/RTD/TC ST; 4 channels in groups of 4; Hardware interrupts; Diagnostics AQ 2x U/I ST; 2 channels in groups of 2; Substitute value; Diagnostics Common mode voltage approx. 10 V 16 bit; Accuracy 0.3%; Delivery including push-in front connector, infeed element, shield bracket and shield terminal | موجود در نمایندگی زیمنس ایران |
| 69 | 6ES7540-1AB00-0AA0 | SIMATIC S7-1500, CM PTP RS422/485 BA COMMUNICATION MODULE FOR SERIAL CONNECTION RS422, RS485 FREEPORT, 3964(R), USS, 19200 KBIT/S, 15-PIN SUB-D FEMALE CONNECTOR | موجود در نمایندگی زیمنس ایران |
| 70 | 6ES7540-1AD00-0AA0 | SIMATIC S7-1500, CM PTP RS232 BA COMMUNICATION MODUL FOR SERIAL CONNECTION RS232, FREEPORT, 3964(R), USS, 19200 KBIT/S, 9-PIN SUB-D CONNECTOR | موجود در نمایندگی زیمنس ایران |
| 71 | 6ES7541-1AB00-0AB0 | SIMATIC S7-1500, CM PTP RS422/485 HF Communication module for Serial connection RS422 and RS485, Freeport, 3964 (R), USS, MODBUS RTU Master, Slave, 115200 Kbit/s, 15-Pin D-sub socket | موجود در نمایندگی زیمنس ایران |
| 72 | 6ES7541-1AD00-0AB0 | SIMATIC S7-1500, CM PTP RS232 HF Communication module for Serial connection RS232, Freeport, 3964 (R), USS, MODBUS RTU Master, Slave, 115200 Kbit/s, 9-pin D-sub connector | موجود در نمایندگی زیمنس ایران |
| 73 | 6ES7550-1AA00-0AB0 | SIMATIC S7-1500, CPU 1516-3 PN/DP, CENTRAL PROCESSING UNIT WITH WORKING MEMORY 1 MB FOR PROGRAM AND 5 MB FOR DATA, 1. INTERFACE, PROFINET IRT WITH 2 PORT SWITCH, 2. INTERFACE, ETHERNET, 3. INTERFACE, PROFIBUS, 10 NS BIT-PERFORMANCE, SIMATIC MEMORY CARD NECESSARY | موجود در نمایندگی زیمنس ایران |
| 74 | 6ES7551-1AB00-0AB0 | SIMATIC S7-1500, TM POSINPUT 2 COUNT AND POSITON INPUT MODULE. 2 CHANNELS FOR RS422 INCREMENTAL ENCODER OR SSI ABSOLUTE ENCODER, 2 DI, 3 DQ PER CHANNEL | موجود در نمایندگی زیمنس ایران |
| 75 | 6ES7552-1AA00-0AB0 | SIMATIC S7-1500, TM Timer DIDQ 16x 24 V time-controlled digital inputs and outputs max. 8 DI, 16 DQ of which max. 16 with time stamp, Count, PWM, oversampling | موجود در نمایندگی زیمنس ایران |
| 76 | 6ES7553-1AA00-0AB0 | SIMATIC S7-1500, TM PTO 4 interface module for stepper drives 4 channels pulse train output PTO: 24 V, RS-422, 5 V, 2 DI, 1 DQ 24VDC per channel | موجود در نمایندگی زیمنس ایران |
| 77 | 6ES7590-1AB60-0AA0 | SIMATIC S7-1500, mounting rail 160 mm (approx. 6.3 inch); incl. grounding screw, integrated DIN rail for mounting of incidentals such as terminals, automatic circuit breakers and relays | موجود در نمایندگی زیمنس ایران |
| 78 | 6ES7590-1AC40-0AA0 | SIMATIC S7-1500, mounting rail 245 mm (approx. 9.6 inch); incl. grounding screw, integrated DIN rail for mounting of incidentals such as terminals, automatic circuit breakers and relays | موجود در نمایندگی زیمنس ایران |
| 79 | 6ES7590-1AE60-0AA0 | - | موجود در نمایندگی زیمنس ایران |
| 80 | 6ES7590-1AE80-0AA0 | SIMATIC S7-1500, MOUNTING RAIL 482 MM (APPR. 19 INCH) INCL. GROUNDING ELEMENT, INTEGRATED DIN RAIL FOR MOUNTING OF SMALL COMPONENTS SUCH AS CLAMPS, FUSES OR RELAYS | موجود در نمایندگی زیمنس ایران |
| 81 | 6ES7590-1AF30-0AA0 | SIMATIC S7-1500, MOUNTING RAIL 530 MM (APPR. 20.9 INCH); INCL. GROUNDING ELEMENT, INTEGRATED DIN RAIL FOR MOUNTING OF SMALL COMPONENTS SUCH AS CLAMPS, FUSES OR RELAYS | موجود در نمایندگی زیمنس ایران |
| 82 | 6ES7590-1AJ30-0AA0 | SIMATIC S7-1500, MOUNTING RAIL 830 MM (APPR. 32,7 INCH); INCL. GROUNDING ELEMENT, INTEGRATED DIN RAIL FOR MOUNTING OF SMALL COMPONENTS SUCH AS CLAMPS, FUSES OR RELAYS | موجود در نمایندگی زیمنس ایران |
| 83 | 6ES7590-1BC00-0AA0 | SIMATIC S7-1500, MOUNTING RAIL 2000 MM (APPR. 78.4 INCH); W/O GROUNDING ELEMENT, INTEGRATED DIN RAIL FOR MOUNTING OF SMALL COMPONENTS SUCH AS CLAMPS, FUSES OR RELAYS FOR SELF CONFIGURING, GROUNDING ELEMENT (6ES7590-5AA00-0AA0, 20 PIECES) MUST BE ORDERED SEPARTELY | موجود در نمایندگی زیمنس ایران |
| 84 | 6ES7592-1AM00-0XB0 | SIMATIC S7-1500, FRONTCONNECTOR SCREW-TYPE, 40PIN, FOR 35MM WIDE MODULES, INCL. 4 JUMPERS, AND CABLE STRAP | موجود در نمایندگی زیمنس ایران |
| 85 | 6ES7592-1BM00-0XB0 | SIMATIC S7-1500, Front connector in push-in design, 40-pole, for 35 mm wide modules incl. 4 potential bridges and cable ties | موجود در نمایندگی زیمنس ایران |
| 86 | 6ES7954-8LC02-0AA0 | SIMATIC S7, MEMORY CARD FOR S7-1X00 CPU/SINAMICS, 3,3 V FLASH, 4 MBYTE | موجود در نمایندگی زیمنس ایران |
| 87 | 6ES7954-8LE02-0AA0 | SIMATIC S7, MEMORY CARD FOR S7-1X00 CPU/SINAMICS, 3,3 V FLASH, 12 MBYTE | موجود در نمایندگی زیمنس ایران |
| 88 | 6ES7954-8LE03-0AA0 | SIMATIC S7, MEMORY CARD FOR S7-1X00 CPU/SINAMICS, 3,3 V FLASH, 12 MBYTE | موجود در نمایندگی زیمنس ایران |
| 89 | 6ES7954-8LF02-0AA0 | SIMATIC S7, MEMORY CARD FOR S7-1X00 CPU/SINAMICS, 3,3 V FLASH, 24 MBYTE | موجود در نمایندگی زیمنس ایران |
| 90 | 6ES7954-8LF03-0AA0 | SIMATIC S7, MEMORY CARD FOR S7-1X00 CPU/SINAMICS, 3,3 V FLASH, 24 MBYTE | موجود در نمایندگی زیمنس ایران |
| 91 | 6ES7954-8LL03-0AA0 | SIMATIC S7, MEMORY CARD FOR S7-1X00 CPU, 3,3 V FLASH, 256 MBYTE | موجود در نمایندگی زیمنس ایران |
| 92 | 6ES7954-8LP01-0AA0 | SIMATIC S7, MEMORY CARD FOR S7-1X00 CPU, 3,3 V FLASH, 2 GBYTE | موجود در نمایندگی زیمنس ایران |
| 93 | 6ES7954-8LP02-0AA0 | *** spare part *** SIMATIC S7, memory cards for S7-1x 00 CPU, 3, 3V Flash, 2 GB | موجود در نمایندگی زیمنس ایران |
| 94 | 6GK7542-1AX00-0XE0 | communications module CM 1542-1 for connection of S7-1500 to PROFINET as IO Controller or IO Device: TCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast multicast, SNMPV1, time-of-day synchronization via NTP, 2xRJ45 (10/100 Mbit). | موجود در نمایندگی زیمنس ایران |
| 95 | 6GK7542-5DX00-0XE0 | COMMUNICATION MODULE CM 1542-5 FOR CONNECTING S7-1500 TO PROFIBUS DP AS DP-MASTER OR DP-SLAVE: S7- AND PG/OP- COMMUNICATION, CLOCK SYNCHRONISATION, DIAGNOSIS | موجود در نمایندگی زیمنس ایران |
| 96 | 6GK7542-5FX00-0XE0 | Communications processor CP 1542-5 for connection of SIMATIC S7-1500 to PROFIBUS DP, DPV1 master or DP slave, S7 and PG/OP communication, time-of-day synchronization, diagnostics, reduced quantity structure. | موجود در نمایندگی زیمنس ایران |
| 97 | 6GK7543-1AX00-0XE0 | COMMUNICATION PROCESSOR CP 1543-1 FOR CONNECTING SIMATIC S7-1500 TO INDUSTRIAL ETHERNET: TCP/IP, ISO, UDP, S7- COMMUNICATION, IP-BROADCAST/ MULTICAST, SECURITY (HARDWARE- IDENTIFICATION, IP/MAC ACCESS LIST, FIREWALL), DIAGNOSIS SNMPV1/V3, DHCP, FTP CLIENT/ SERVER, E-MAIL, IPV4/IPV6, DATA STORAGE ON SD CARD OF CPU, CLOCK SYNCHRONISATION VIA NTP, ACCESS TO WEBSERVER OF CPU; GIGABIT-SS 1XRJ45 (10/100/1000 MBIT) | موجود در نمایندگی زیمنس ایران |
| 98 | 6GK7543-5FX00-0XE0 | - | موجود در نمایندگی زیمنس ایران |
| 99 | 7MH4980-1AA01 | SIMATIC S7-1500, Weighing module TM SIWAREX WP521 ST, 1 channel/1 scale. For connection of load cells / strain gauge full bridges (1-4 mV/V). RS485 and Ethernet port, additional I/O: DI 3 X 24V DC / DQ 4 X 24V DC. | موجود در نمایندگی زیمنس ایران |
| 100 | 7MH4980-2AA01 | SIMATIC S7-1500, Weighing module TM SIWAREX WP522 ST, 2 channels/2 scales. For connection of load cells / strain gauge full bridges (1-4 mV/V). RS485 and Ethernet port, additional I/O: DI 3 X 24V DC / DQ 4 X 24V DC (per channel). | موجود در نمایندگی زیمنس ایران |
