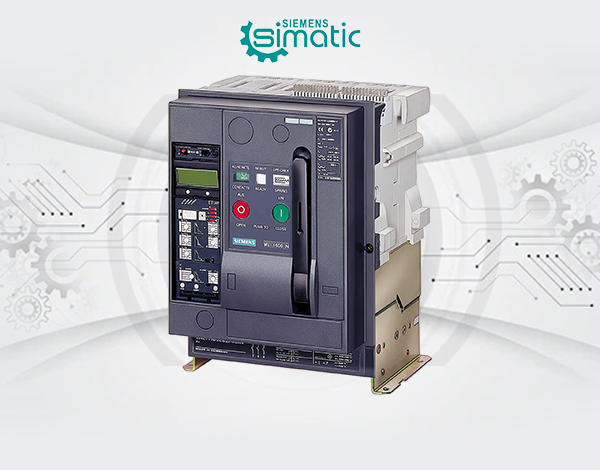

کلید هوایی زیمنس
کلید هوایی زیمنس به صورت سه و چهار پل ساخته می شود که نوع سه پل دارای سه فاز و نوع چهار پل دارای ترمینال نول نیزمی باشد. مهترین مساله در کلید هوایی زیمنس اینست که این کلیدها از دوقسمت قدرت و الکترونیک تشکیل شده است که در قسمت الکترونیکی آن ساختار میکرو پروسسوری تبعیت می کند ودارای تنظیمات وساختاربسیاردقیقی میباشد.
این نوع کلید های هوایی زیمنس دارای ETU می باشد که حفاظت این کلید ها را چندی برابر نموده است.
رله ETU کلید های هوایی زیمنس قابلیت اتصال به شبکه اتوماسیون صنعتی زیمنس را دارد.
| ردیف | کد قطعه | توضیحات | موجودی |
|---|---|---|---|
| 1 | 3WL1106-2CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=630A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 2 | 3WL1106-2DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=630A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 3 | 3WL1106-3CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=630A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 4 | 3WL1106-3DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=630A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 5 | 3WL1108-2CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=800A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 6 | 3WL1108-2DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=800A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 7 | 3WL1108-3CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=800A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 8 | 3WL1108-3DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=800A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 9 | 3WL1108-3DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=800A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 10 | 3WL1110-2CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1000A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 11 | 3WL1110-2DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1000A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 12 | 3WL1110-3CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1000A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 13 | 3WL1110-3DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1000A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 14 | 3WL1112-2CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1250A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 15 | 3WL1112-2DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1250A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 16 | 3WL1112-3CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1250A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 17 | 3WL1112-3DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1250A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 18 | 3WL1116-2CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1600A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 19 | 3WL1116-2DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1600A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 20 | 3WL1116-3CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1600A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 21 | 3WL1116-3DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=1600A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 22 | 3WL1120-2CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=2000A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 23 | 3WL1120-2DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=2000A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 24 | 3WL1120-3CB321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=2000A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 25 | 3WL1120-3DG321AA2 | fixed-mounted circuit breaker 3-pole, size I, IEC In=2000A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 26 | 3WL1225-2CB321AA2 | fixed-mounted circuit breaker 3-pole, size II, IEC In=2500A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 27 | 3WL1225-2DG321AA2 | fixed-mounted circuit breaker 3-pole, size II, IEC In=2500A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 28 | 3WL1232-2CB321AA2 | fixed-mounted circuit breaker 3-pole, size II, IEC In=3200A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 29 | 3WL1232-2DG321AA2 | fixed-mounted circuit breaker 3-pole, size II, IEC In=3200A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 30 | 3WL1240-2CB311AA2 | fixed-mounted circuit breaker 3-pole, size II, IEC In=4000A to 690V, AC50/60Hz Icu=66kA at 500V rear connection vertical Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC | موجود در نمایندگی زیمنس ایران |
| 31 | 3WL9111-0AB07-0AA0 | accessories circuit breaker 3WL cod.set f. fixed-mount circ.br. | موجود در نمایندگی زیمنس ایران |
| 32 | 3WL9111-0AB08-0AA0 | accessories circuit breaker 3WL wiper contact module f. withdrawable circ.breaker | موجود در نمایندگی زیمنس ایران |
| 33 | 3WL9111-0AB18-0AA0 | accessories circuit breaker 3WL wiper contact module f. withdrawable circ.breaker sigut | موجود در نمایندگی زیمنس ایران |
| 34 | 3WL9111-0AG01-0AA0 | accessories circuit breaker 3WL aux.switch block 2NO +2NC | موجود در نمایندگی زیمنس ایران |
| 35 | 3WL9111-0AH01-0AA0 | accessories circuit breaker 3WL ready to run message s20 | موجود در نمایندگی زیمنس ایران |
| 36 | 3WL9111-0AH07-0AA0 | accessories circuit breaker 3WL 5-digit mechanical operations counter | موجود در نمایندگی زیمنس ایران |
| 37 | 3WL9111-0AH08-0AA0 | accessories circuit breaker 3WL signal switch for spring storage state | موجود در نمایندگی زیمنس ایران |
| 38 | 3WL9111-0AH14-0AA0 | accessories circuit breaker 3WL 1st trip signalling switch 1 CO; S24 | موجود در نمایندگی زیمنس ایران |
| 39 | 3WL9111-0AJ02-0AA0 | accessories circuit breaker 3WL electr. on-pushbut. In op.panel with sealing cape Incl. connection cables | موجود در نمایندگی زیمنس ایران |
| 40 | 3WL9111-0AP01-0AA0 | accessories circuit breaker 3WL door sealing frame IP41 for inst. In contr.cabinet door | موجود در نمایندگی زیمنس ایران |
